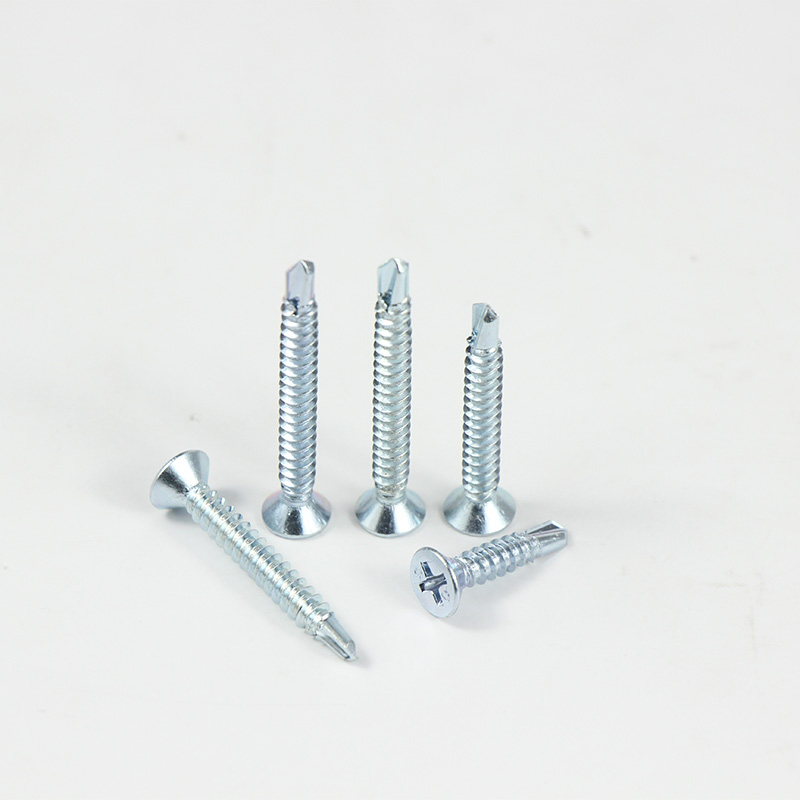

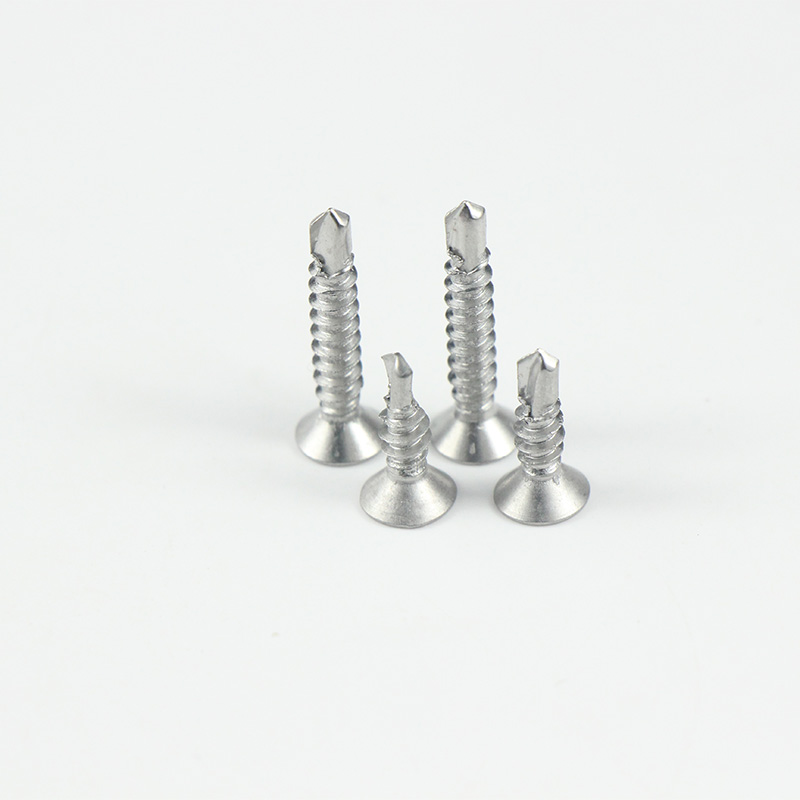

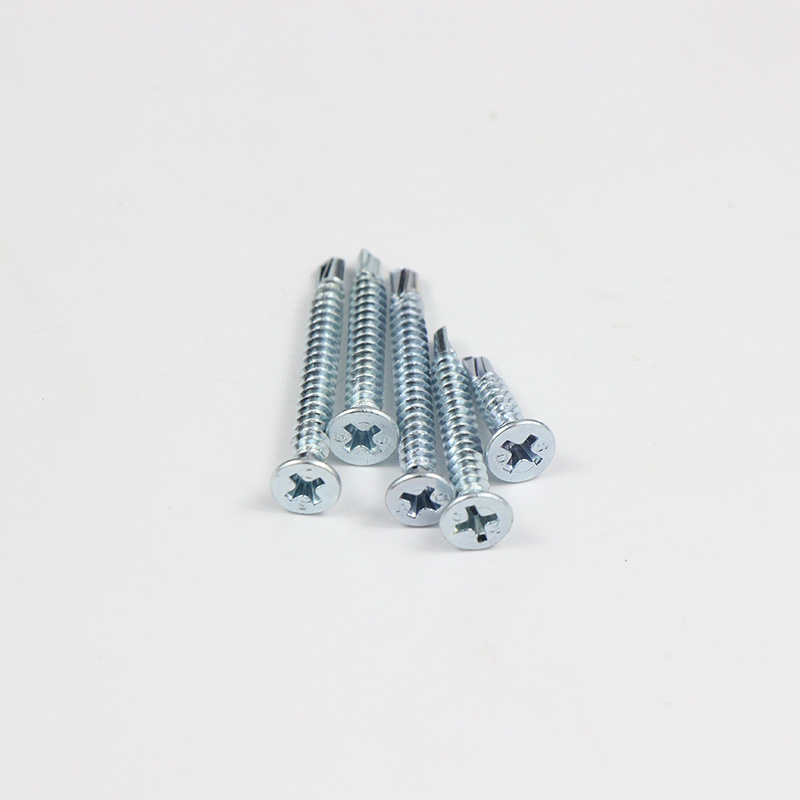

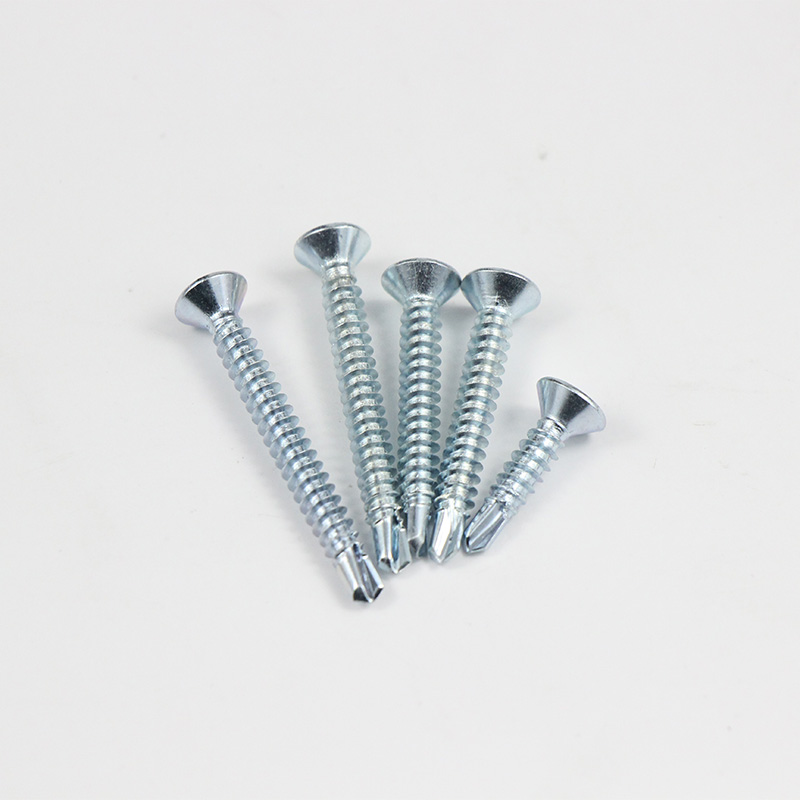

Countersunk Head Self-Drilling Screws
◆ DIN 7504
◆ ISO 14583
◆ ANSI/ASME B18.6.1
◆ JIS B 1186
Description

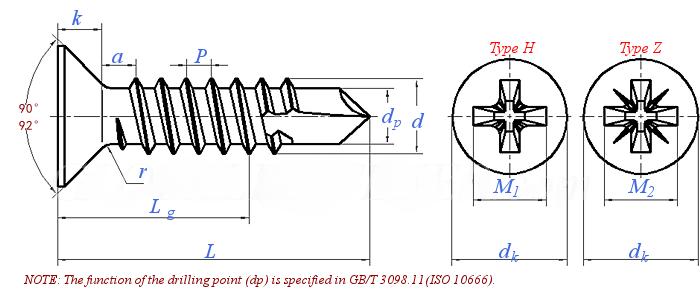

Screws with a countersunk head and a drill point, designed for easy installation without the need for pre-drilling. They provide a flush, smooth finish for a neat, professional appearance.
Product Details
● Countersunk head design: Allows the screw to sit flush with the surface for a clean, aesthetic look.
● Self-drilling tip: Eliminates the need for pilot holes, allowing for quick and easy installation into metal, wood, and plastic.
● Durable materials: Available in corrosion-resistant finishes such as stainless steel, zinc-plated, or coated for extended lifespan.
● Strong holding power: Ideal for securing materials where a low-profile, flush finish is required without compromising strength.
Product Parameters
Material: Stainless Steel, Zinc-Plated Steel, Carbon Steel
Thread Type: Self-tapping, Self-drilling
Applications
Widely used in sheet metal, wood, plastic, and roofing applications where a flush, neat finish is desired.
